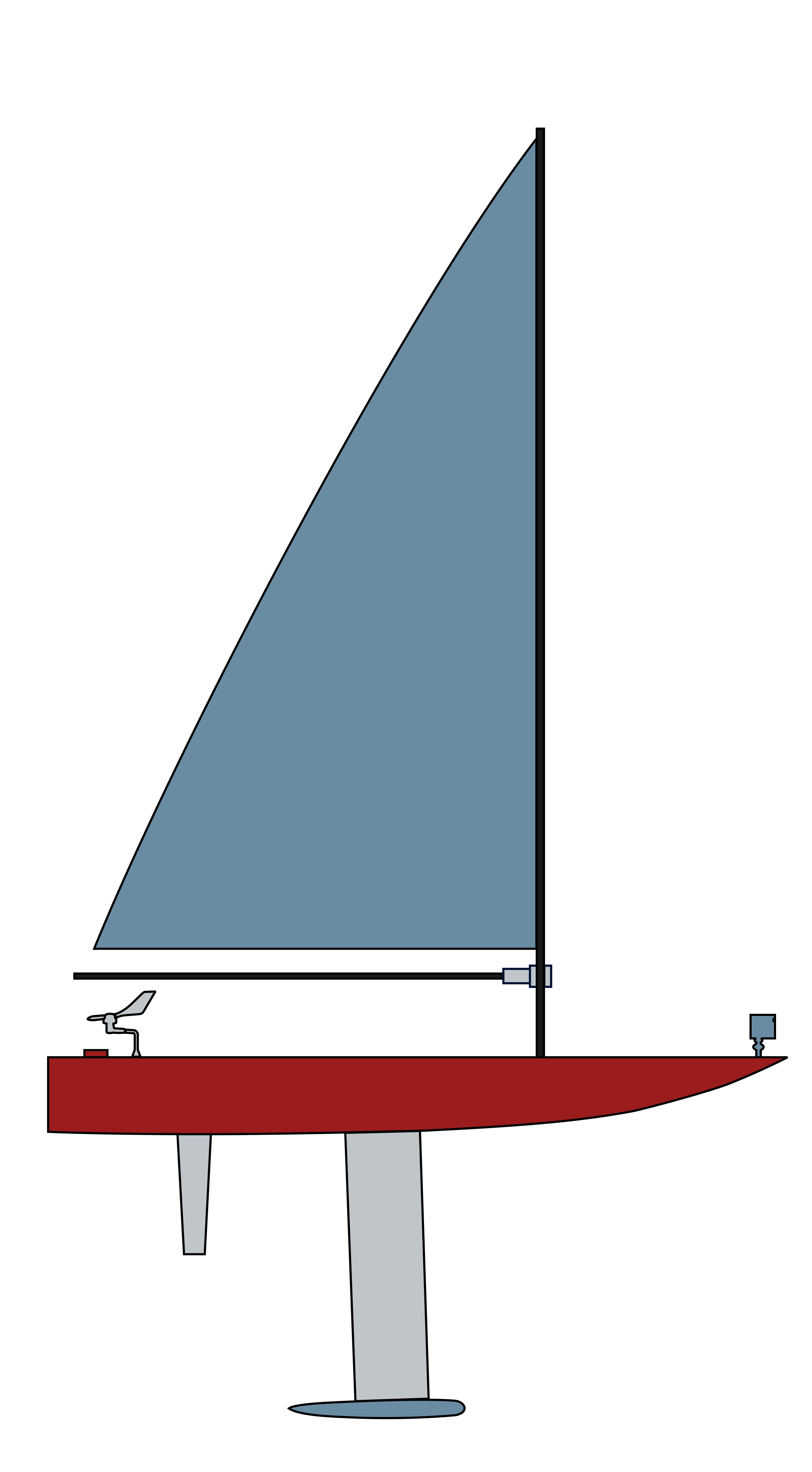

Our Boat Design

Wind Icon Wind Icon
Sail

The sail is trimmed and eased through a new rigging system that reflects traditional sailboats, as opposed to directly turning the mast.

White boat Red boat
Deck & Hull

The hull is composed of a fiberglass layup with carbon fiber reinforcements, and the deck has a wood core also incorporating fiberglass. It is finished off with a bright red gel coat, leading to its name “Redfourty”.

White sensor Red sensor
Camera

Our new camera has two cameras, used to capture two different points of an object. Using trigonometry on the two points of reference, we can determine the distance away from an object, a function we use for the “search” event in competition.

Boatpic
White code Red code
Motor Control

The motor control system features two servo motors. One servo motor is used for controlling the sail trim: it uses a string to pull in and release the sail. The other servo motor is connected to the rudder, used for changing the boat’s direction.

White ballast Red ballast
Ballast

The ballast is the lowest point of the boat, and adds weight to lower the boat’s center of gravity. When wind blows against the boat, the ballast provides a righting moment for the boat to rebalance.

White chip Red chip
Electronics

Two highlights of our electronics setup include a printed circuit board (PCB) and a MiniPC. Our newly designed PCB serves as a DC-DC voltage stepper, is a breakout board for our microcontroller, and integrates a step-down (buck) converter to regulate input voltages. The MiniPC acts as the brains of our boat by running our boat software, an upgrade that provides more computing power for our computer vision inference.

Our Fleet

Sailvane 4

SailVane IV, "Felicia"

2018-2019

SailVane IV was our second boat whose deck and hull exceed a meter in length. SailVane IV had multiple removable sail skeleton mounts, which was both more durable and optimized than SailVane III's removable sails. SailVane IV also featured a 3-D printed mast step, brass ballast, and stronger, sturdier keel.

Sailvane 3

SailVane III, "Fiona"

2017-2018

SailVane III doubled in size to 2 meters to increase the boat's speed. The boat also had increased modularity of parts and and better integration with the navigation team. In this new design, the ballast and keel could be removed for ease of transportation and freedom to change sizes or weights. Both the main sail and tail could also be interchanged easily to reflect the wind conditions.

SailVane 2

SailVane II

2016-2017

SailVane II was the product of CUSail's first year as a project team. For the first time, the deck, hull, and keel were made completely from carbon fiber opposed to fiber glass in order to decrease weight yet increase strength.

A new system of rubber-mold and acrylic-channel hatches were implemented to both increase waterproofing reliability and ease taking in and out the electronics boxes from inside the boat.

For the first time, a PixyCam was fixed to the front of the deck to give our boat vision and allow us to detect buoys and avoid other sailboats.

Sailvane 1

SailVane I

2015-2016

SailVane I was the first boat created by CUSail. This sailboat successfully implemented the idea to eliminate the need for a rudder by adding a second 'tail' sail.

Using a combination of sensors, such as GPS, inertial measurement unit, and a magnetic rotary sensors, and a short term navigation algorithm, SailVane 1 was able to take its maiden voyage.

A microcontroller allows for communication between the sensor array, the navigation algorithm, and the control system which communicates to servo motors that rotate the sail and tail to appropriate angles.
